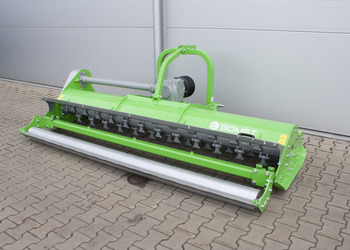

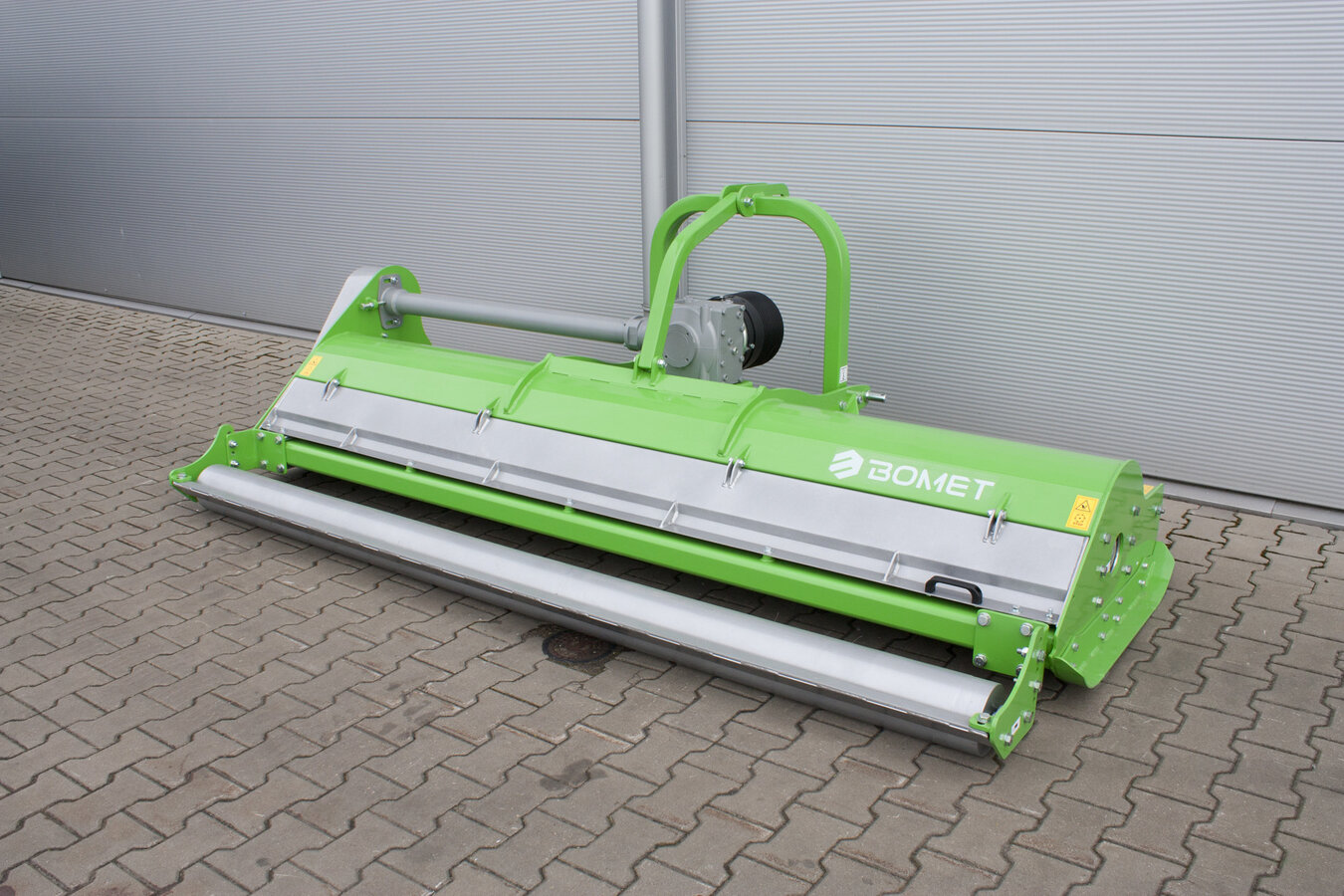

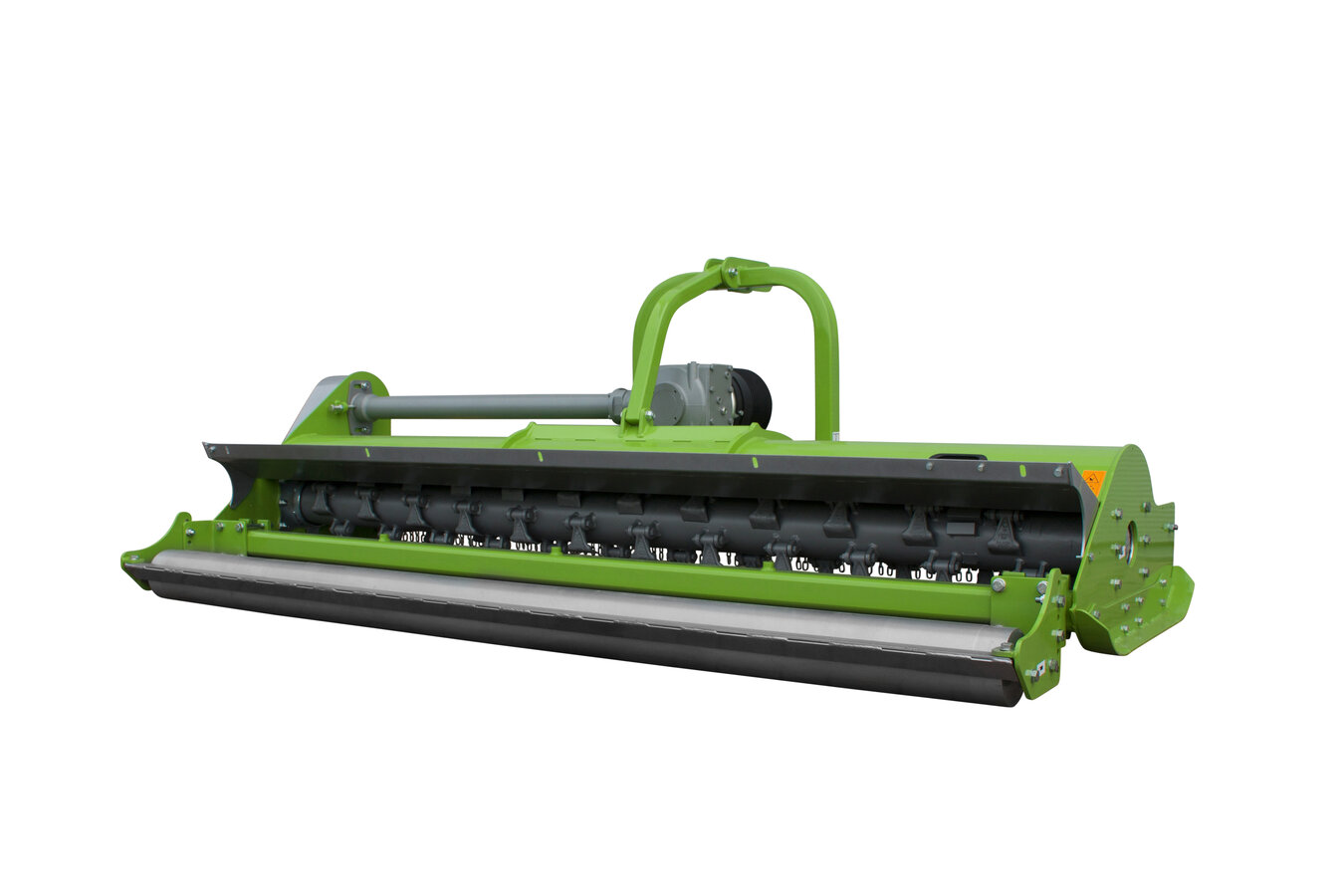

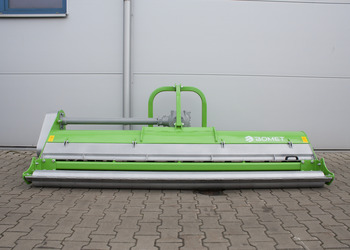

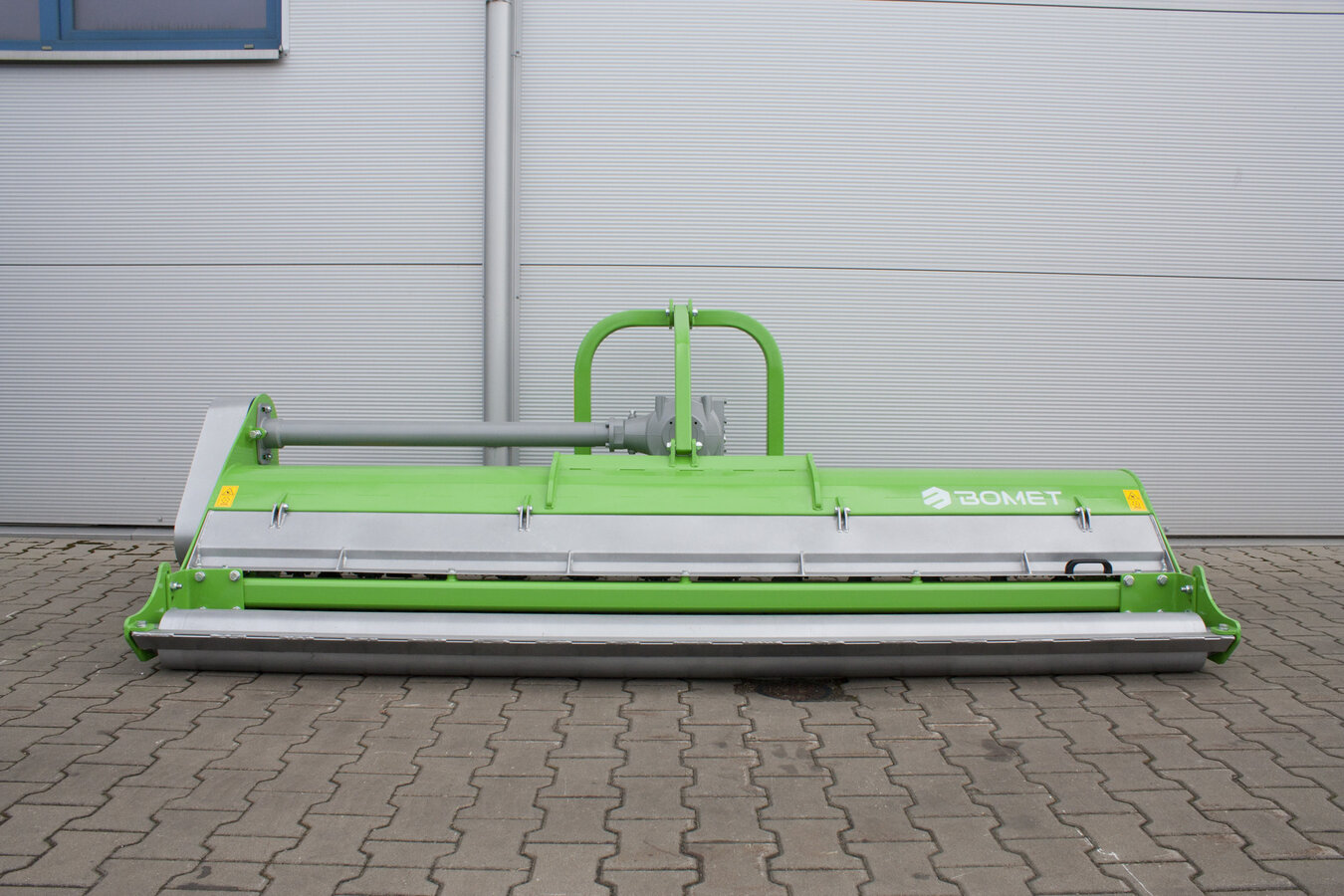

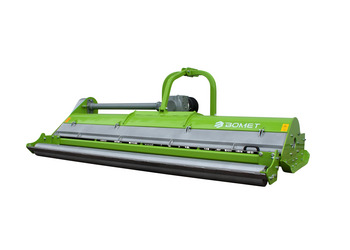

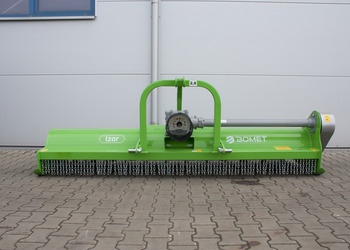

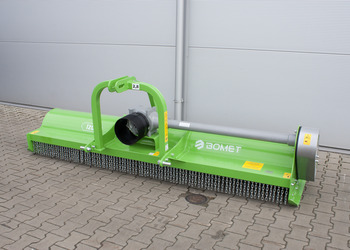

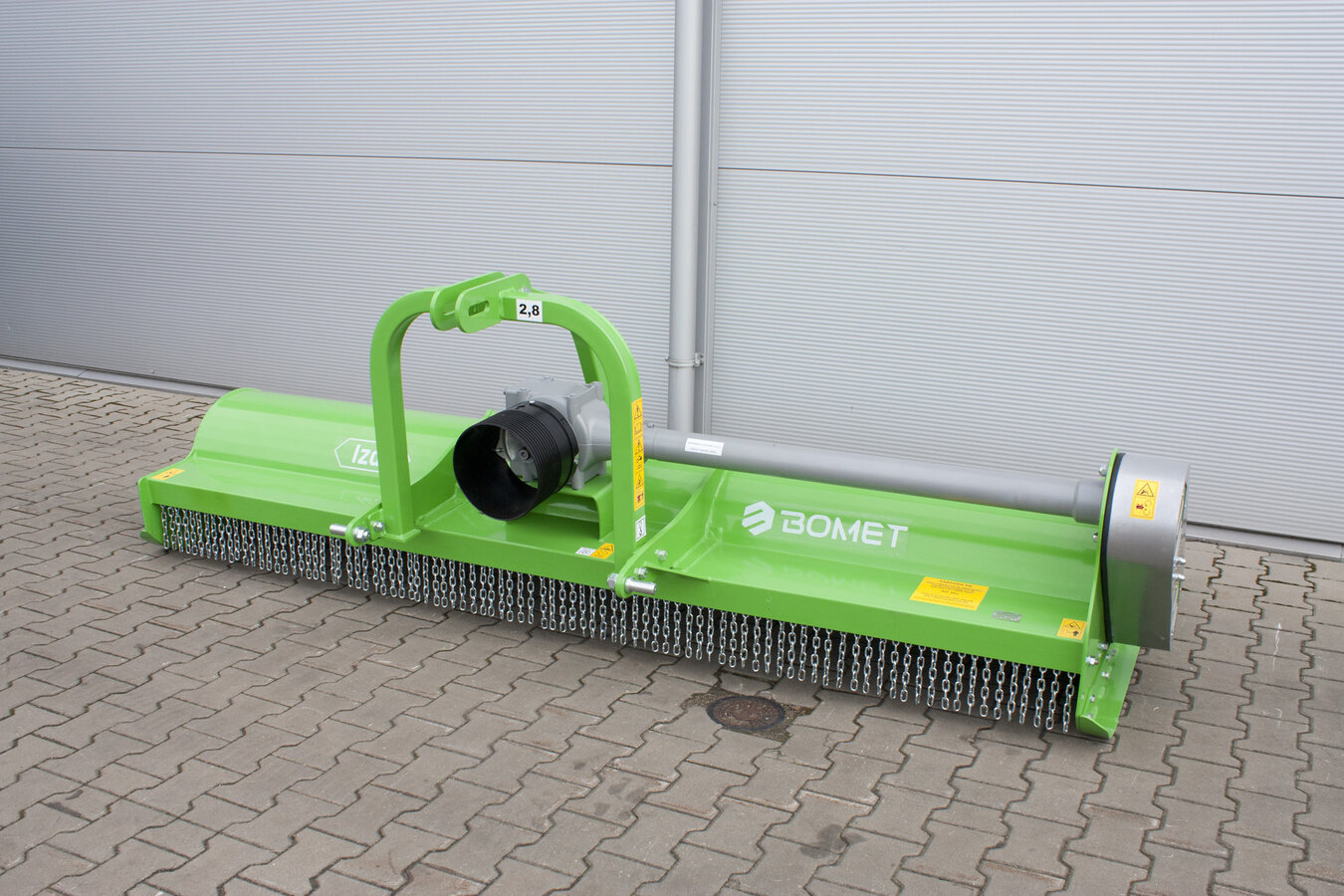

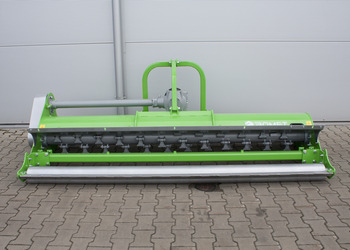

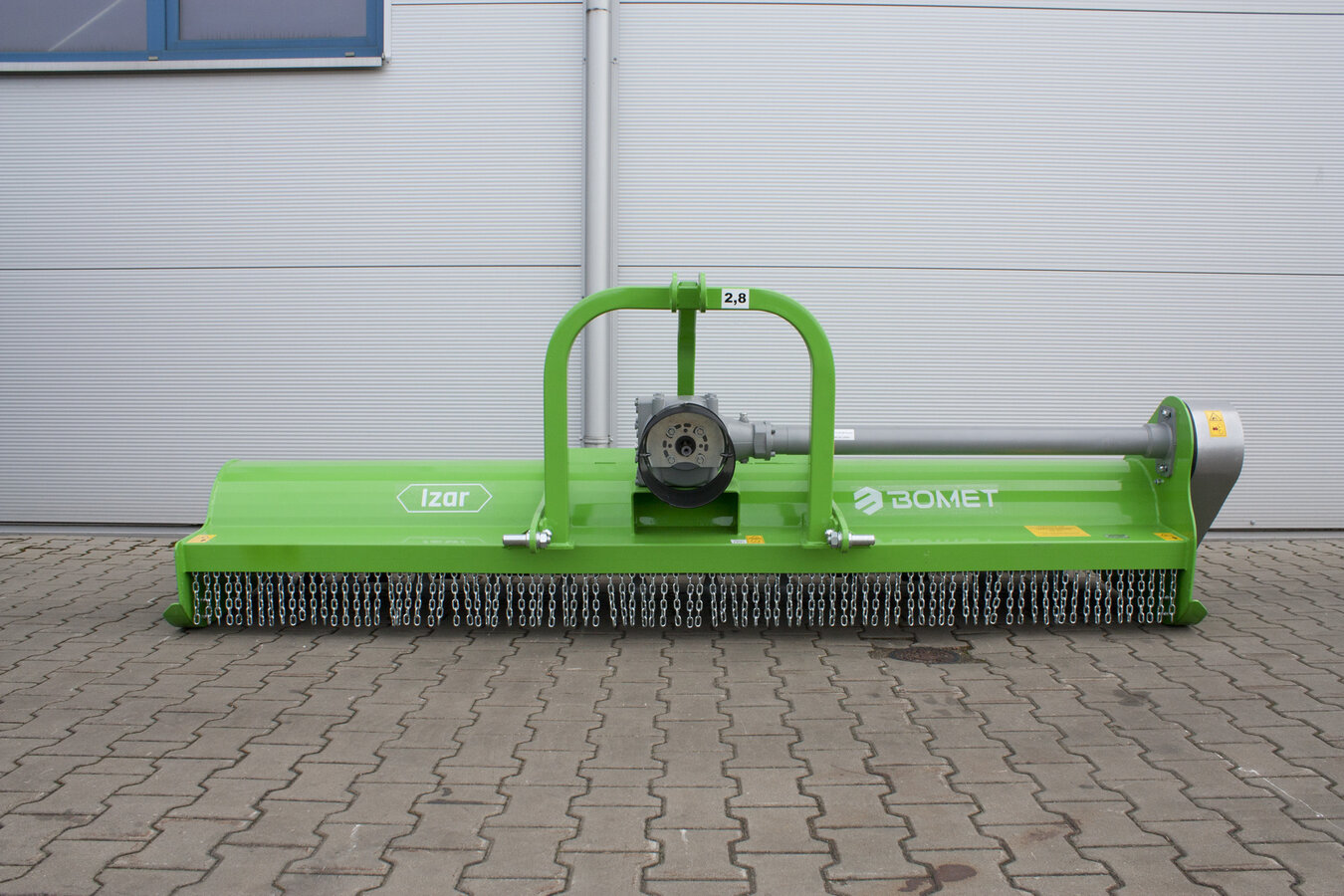

Flail mowers Izar
Flail mowers Izar are designed to destroy crop residues, to mulch meadows and pastures, and to crush chopped branches of shrubs (max. diameter 30 mm) on soft fruit fields and orchard.

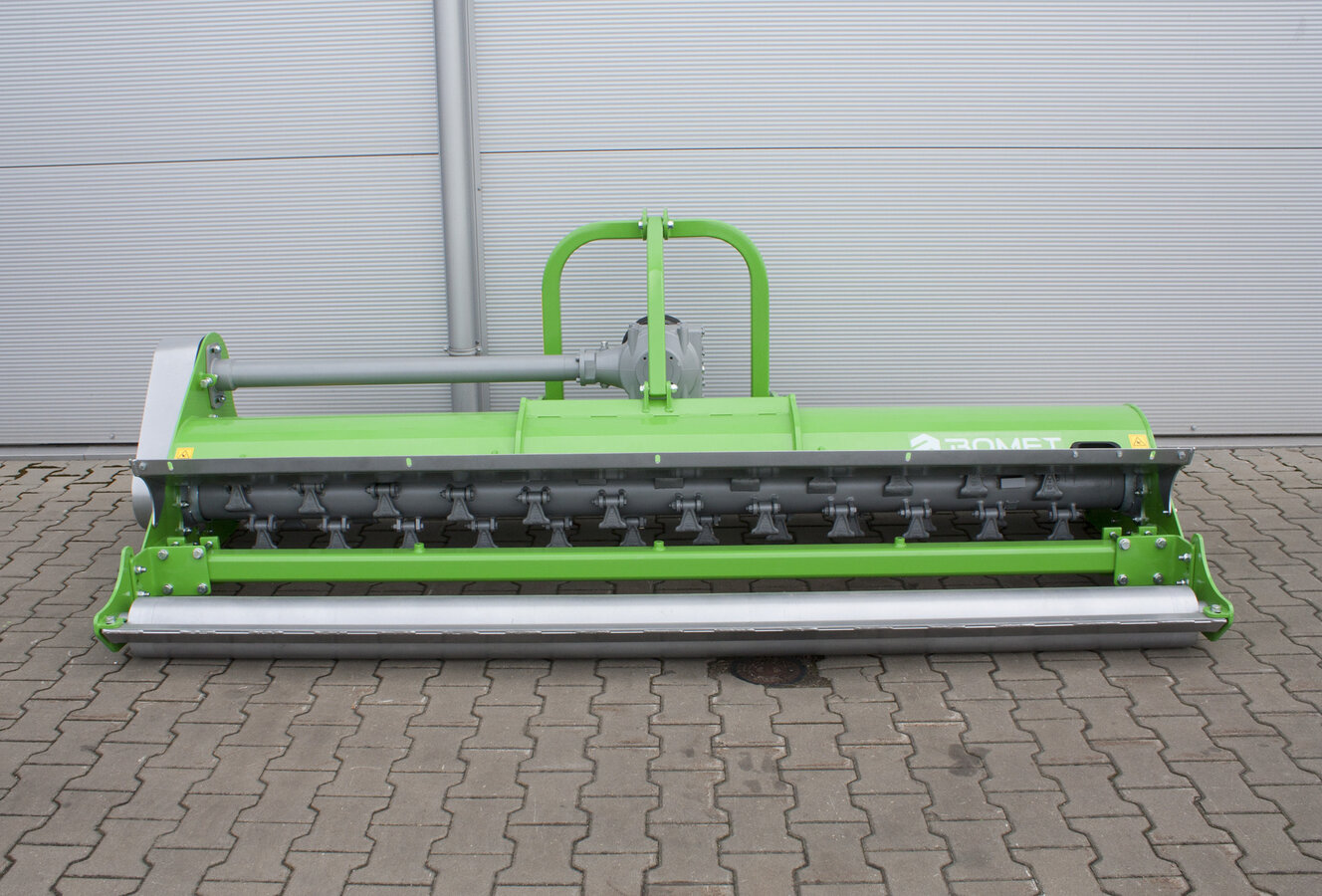

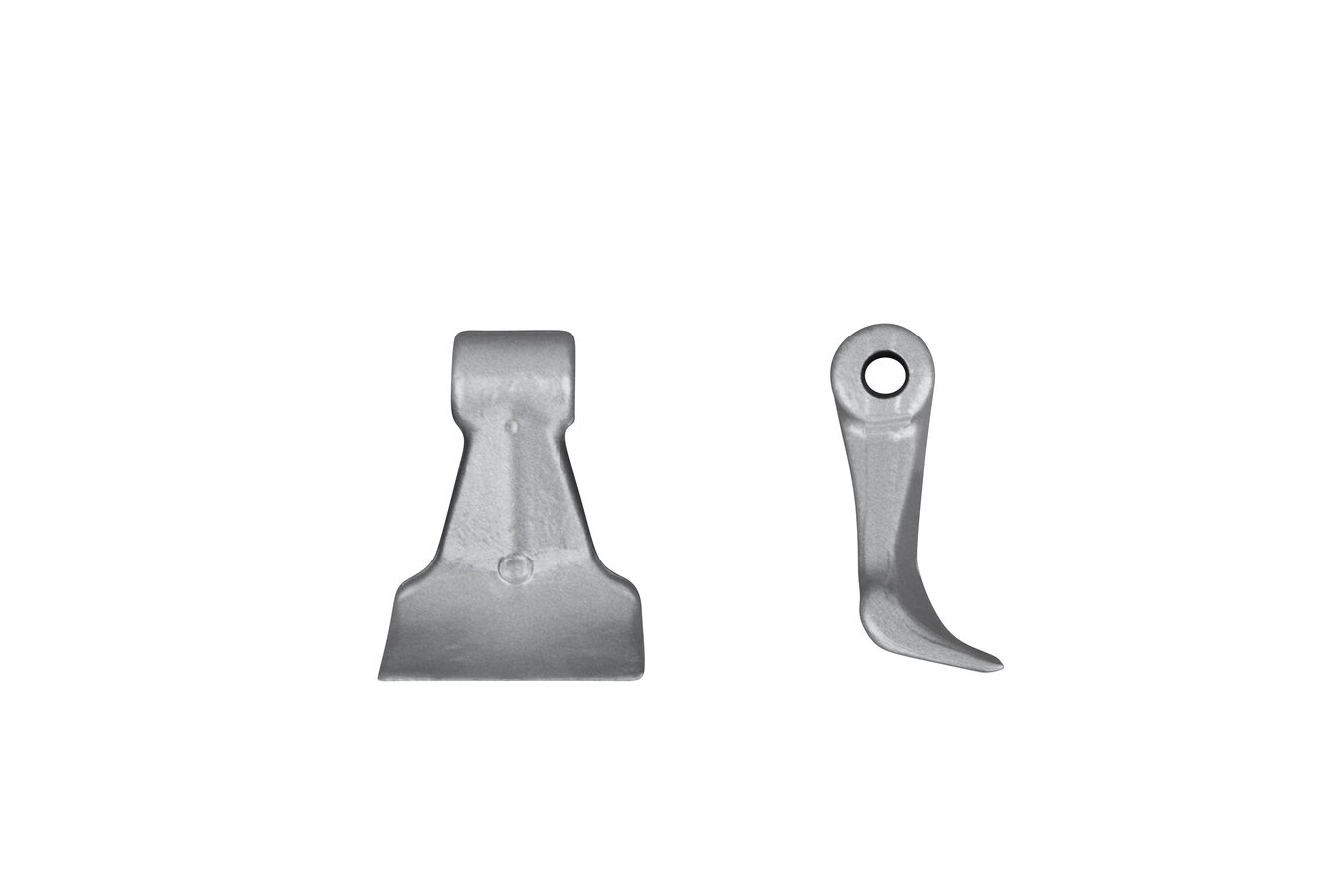

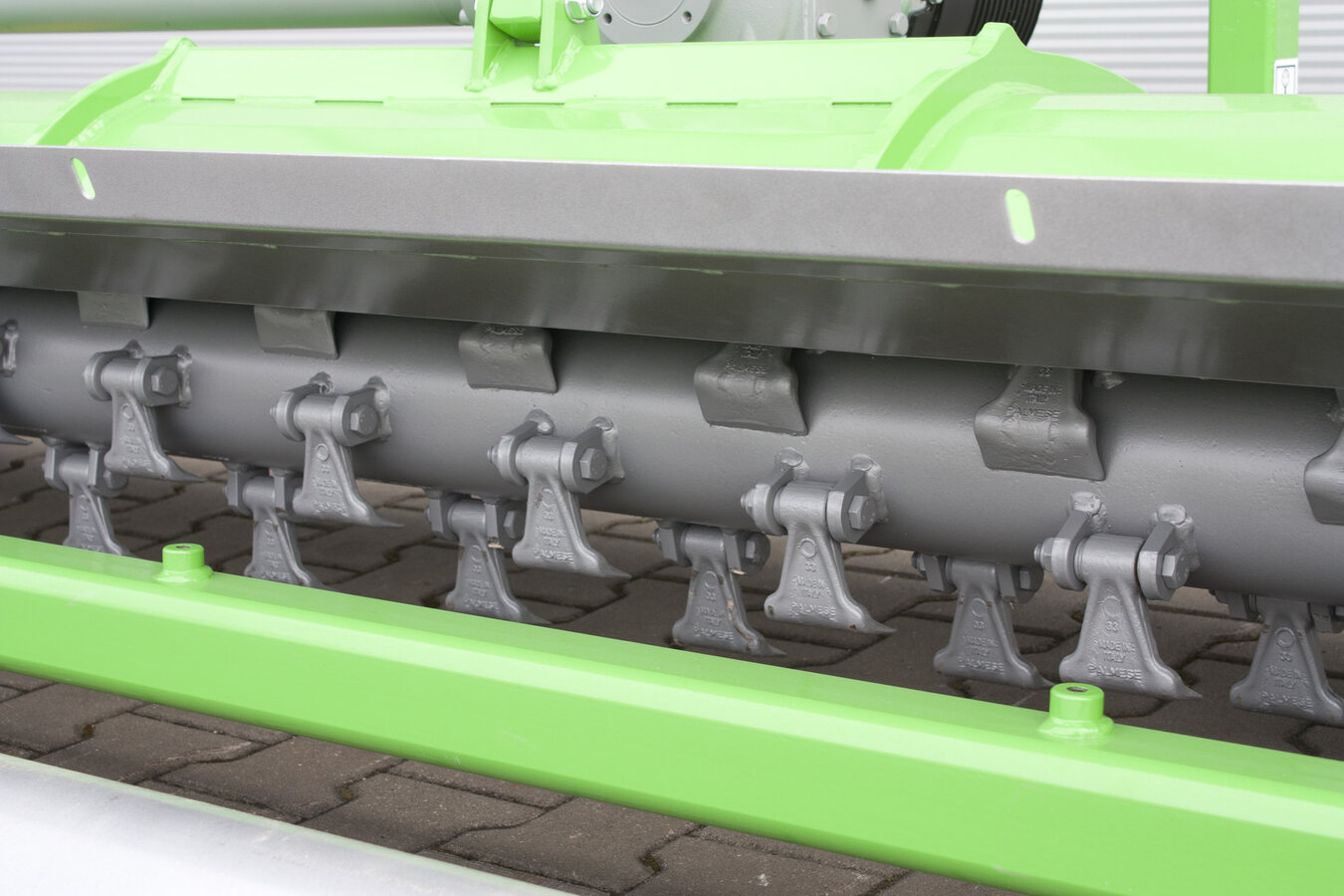

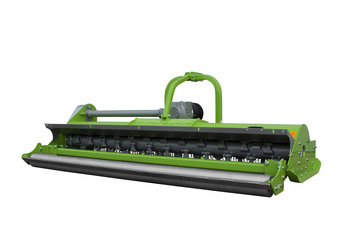

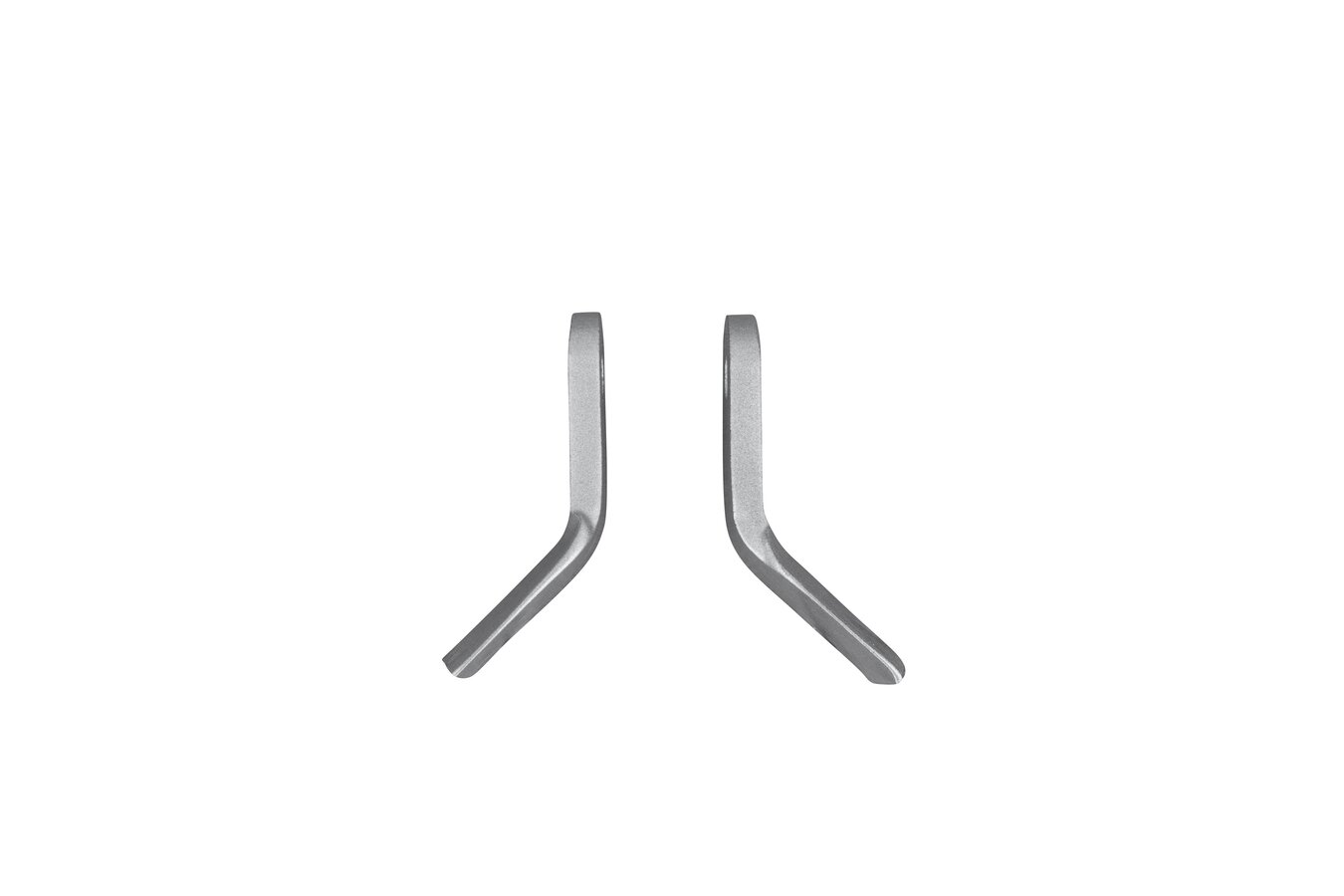

The machine can be equipped with Y type knives or hammers. The Y knives are designed for mowing the grass, while the flail hammers are used for shredding small branches and shrubs.
To improve the quality and safety of work, each working shaft is balanced before installation, after the knives or flail hammers have been mounted.

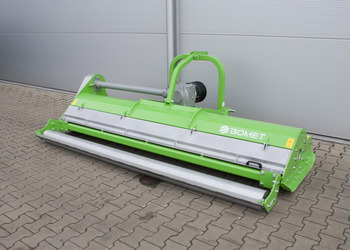

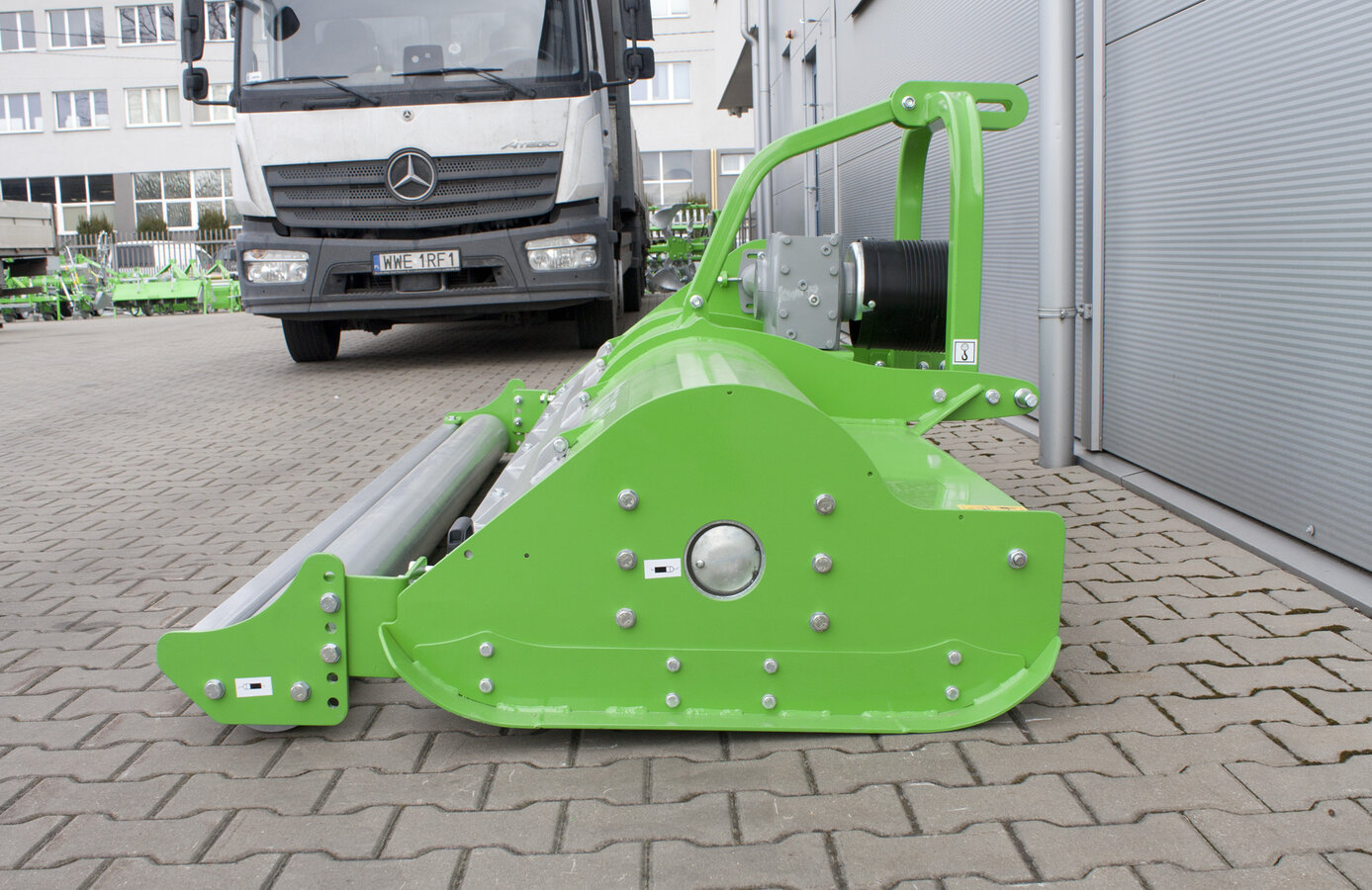

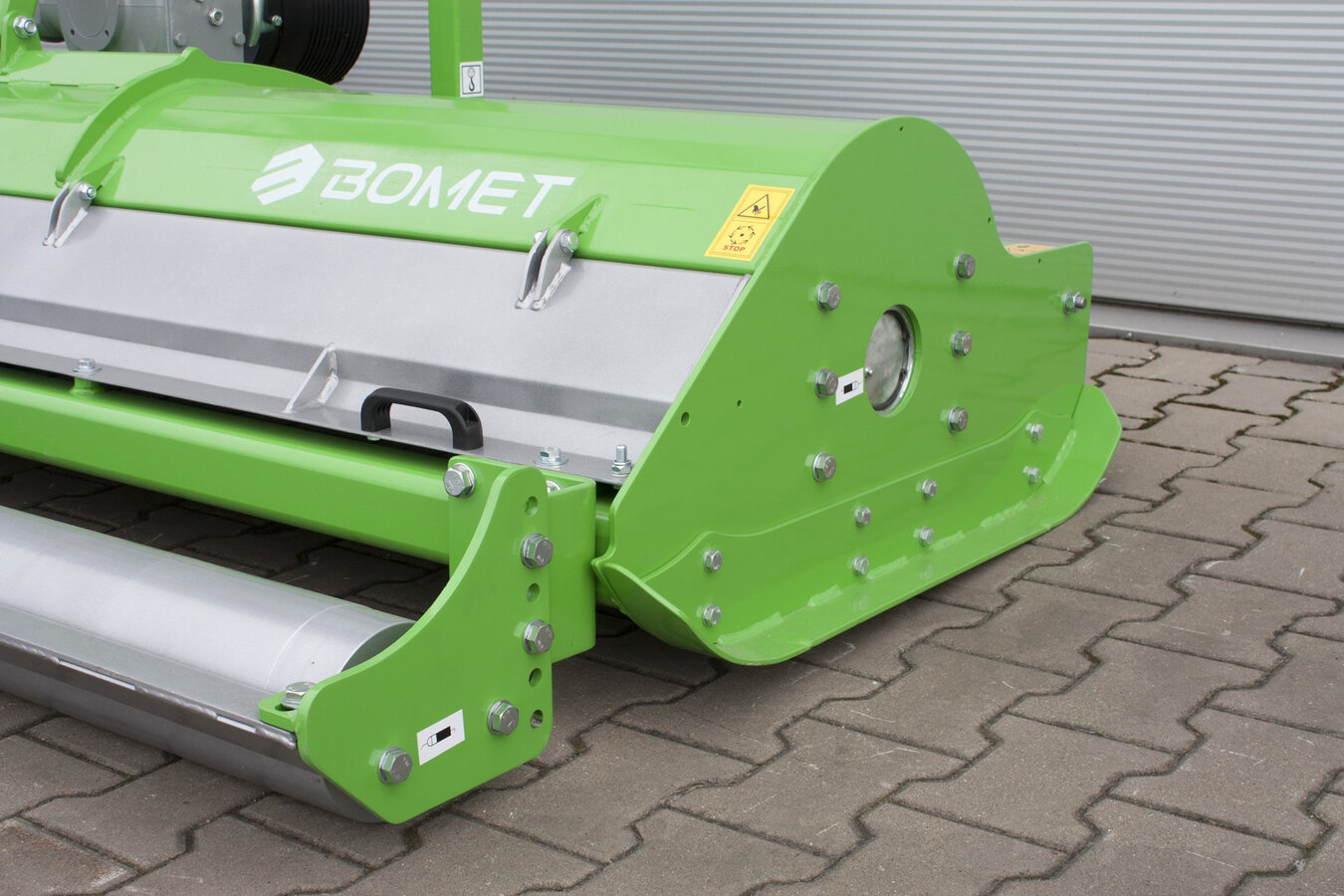

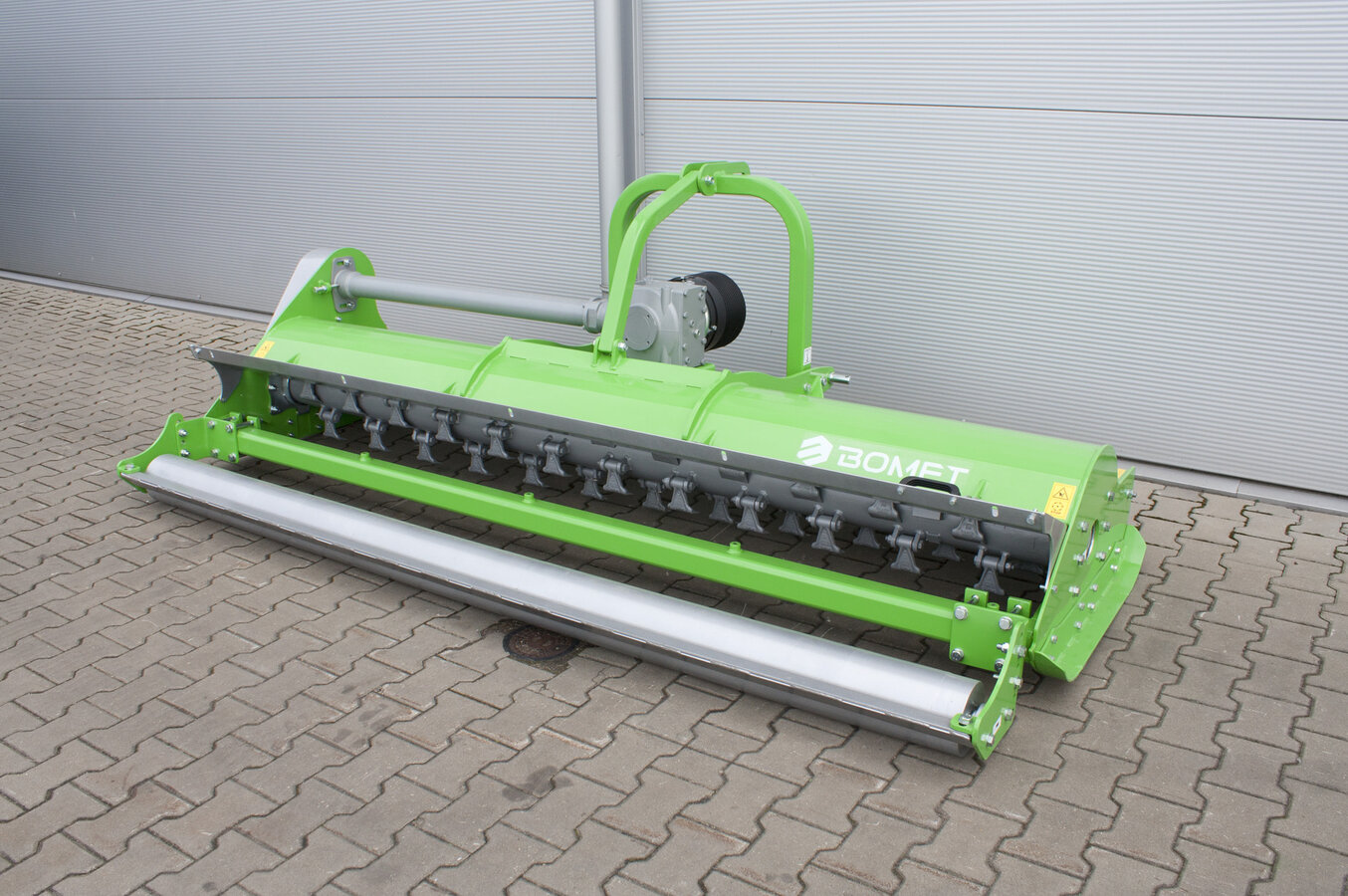

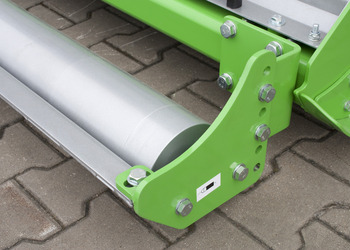

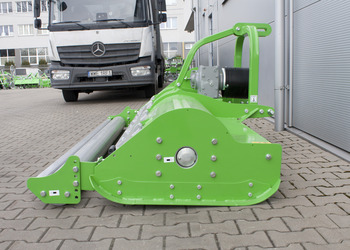

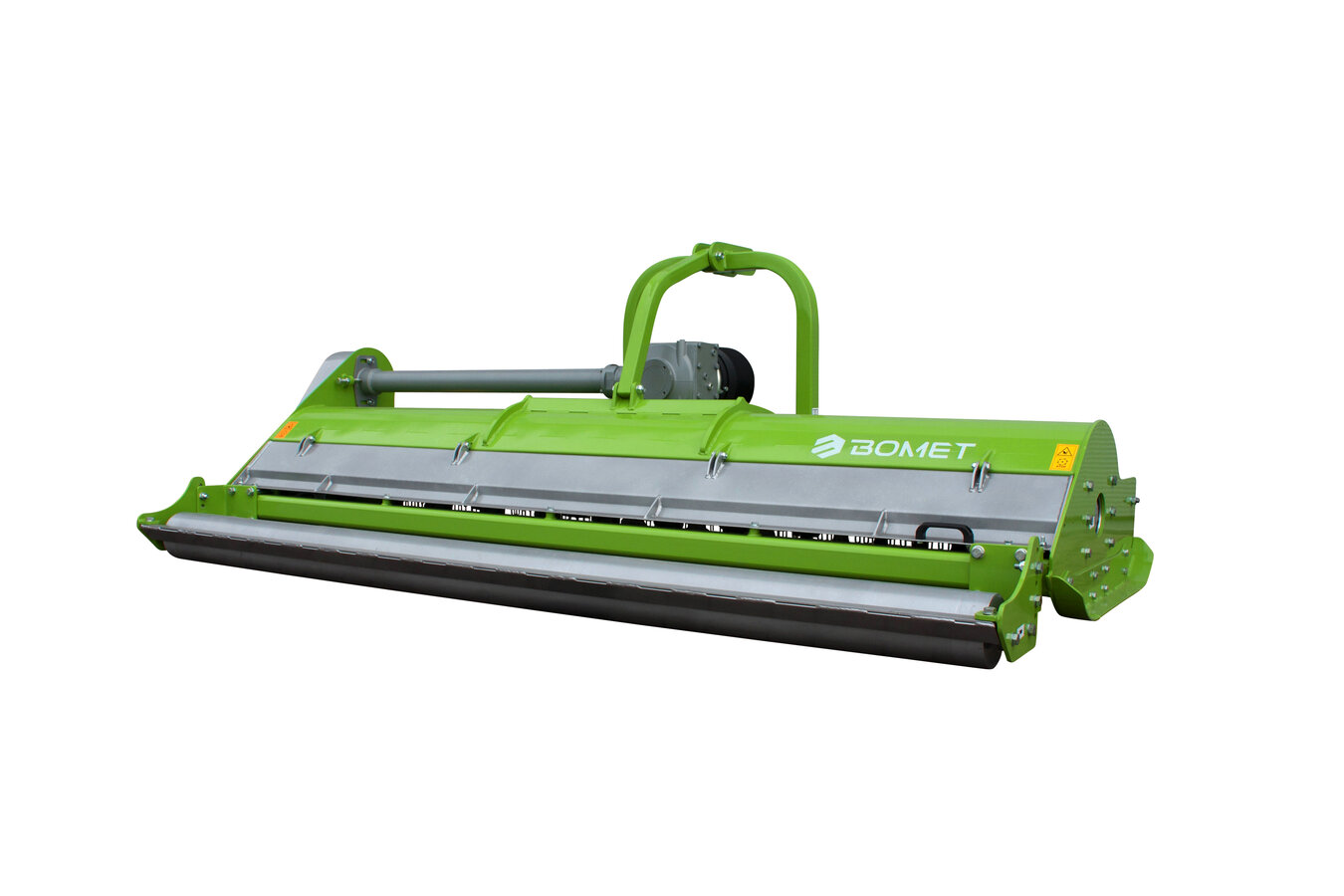

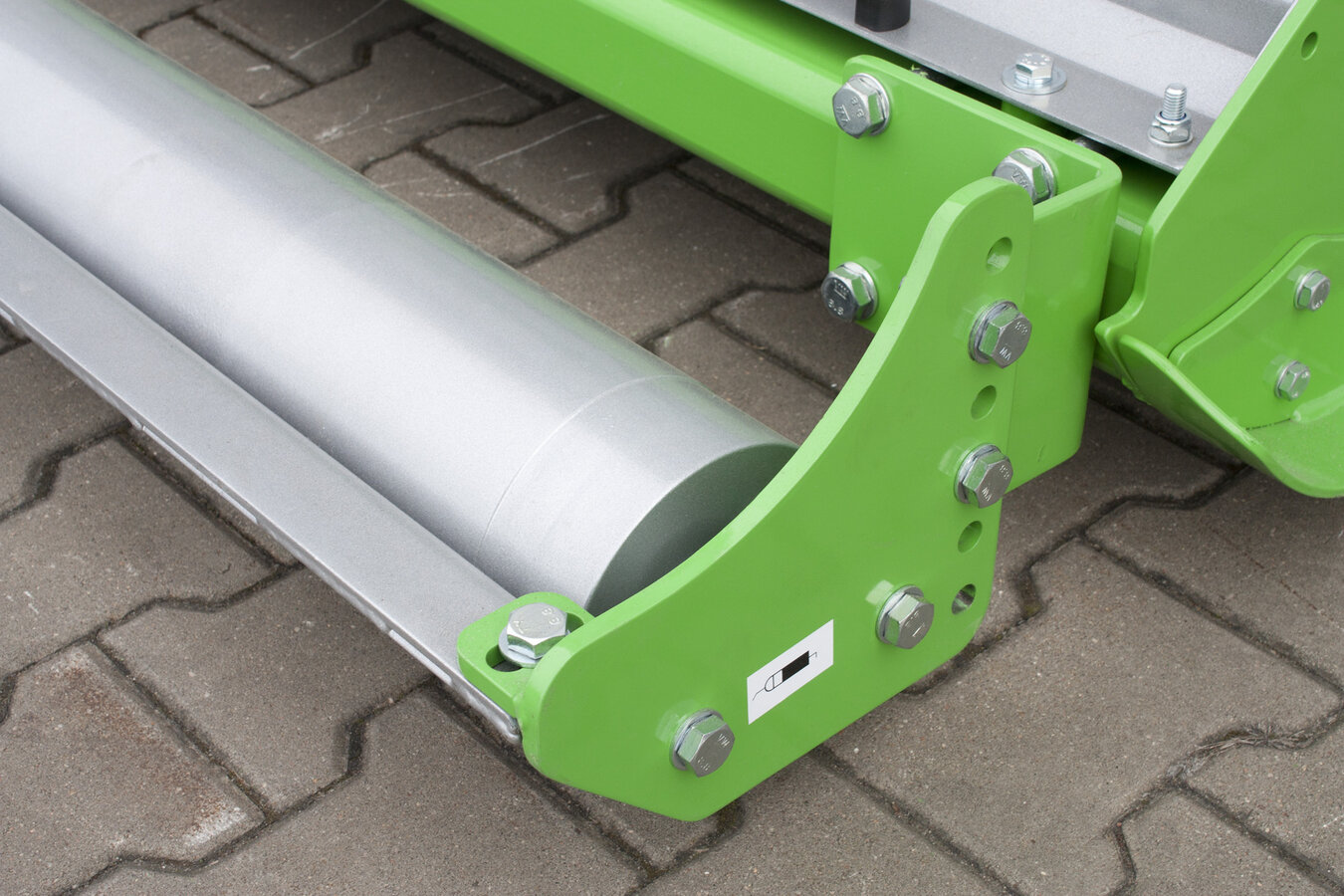

During operation, the machine rests on two supporting wheels or a roller. Due to simple height adjustment it is possible to obtain appropriate shredding of the material.

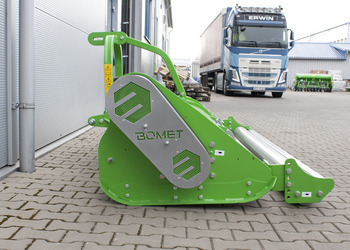

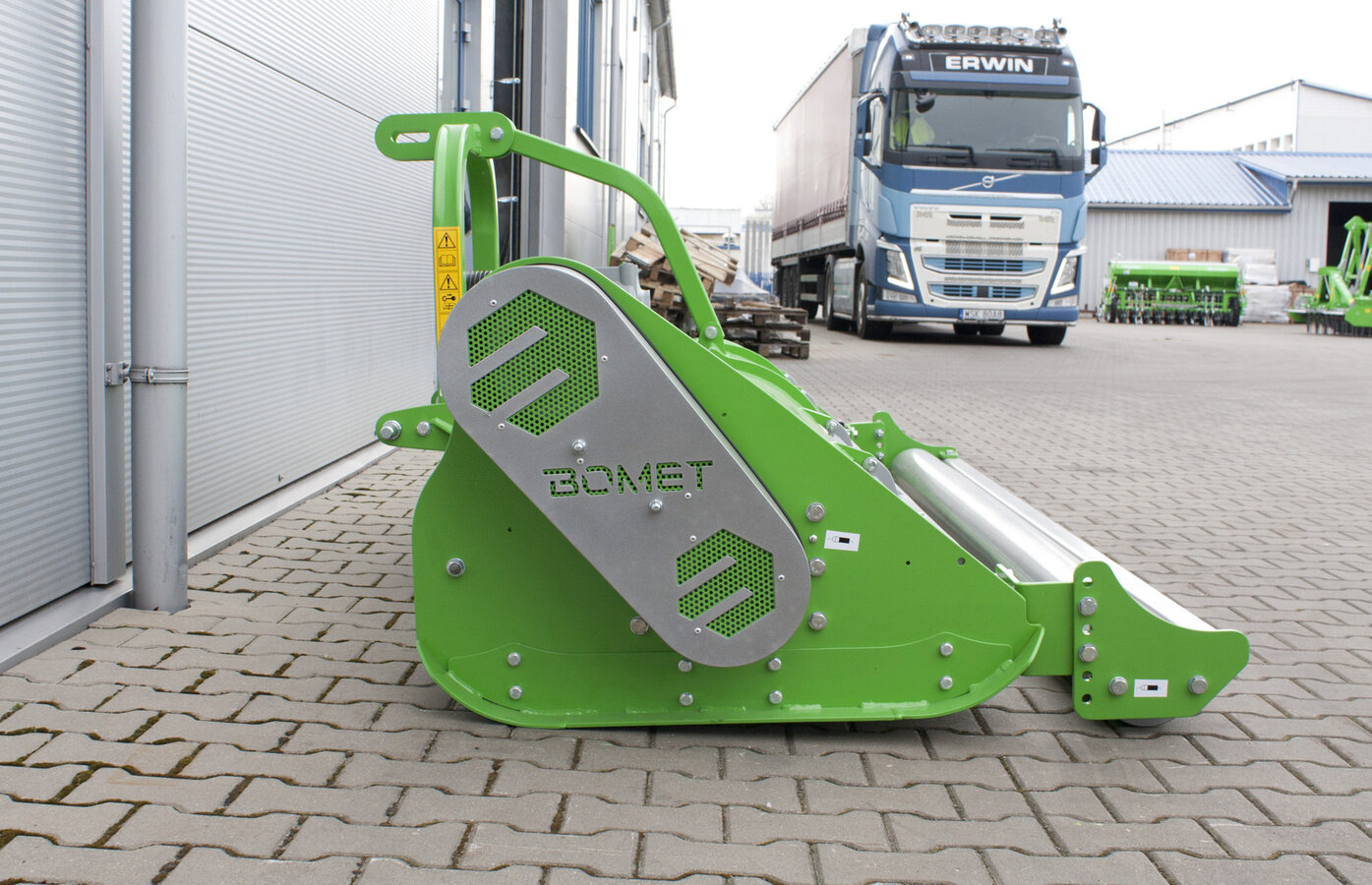

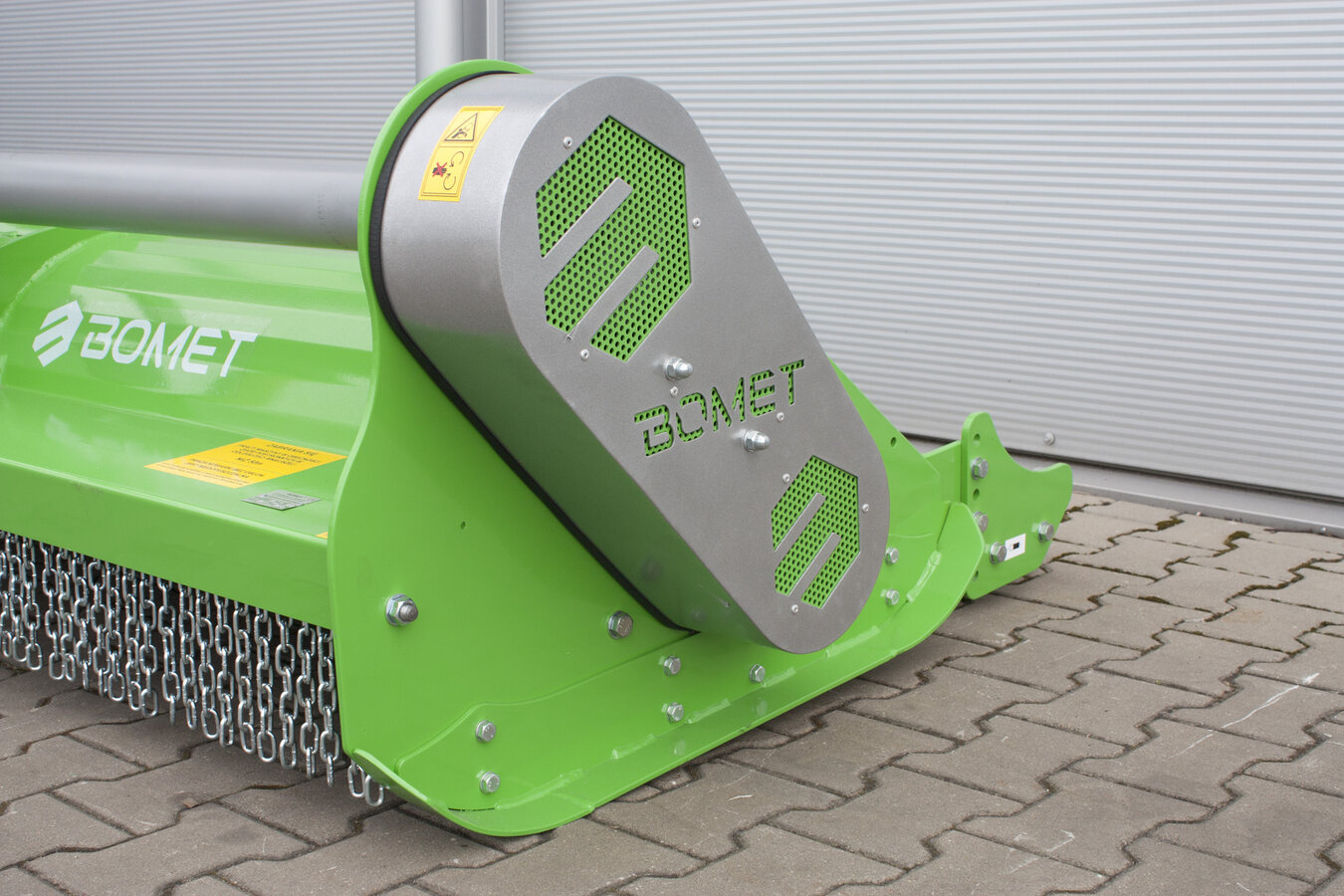

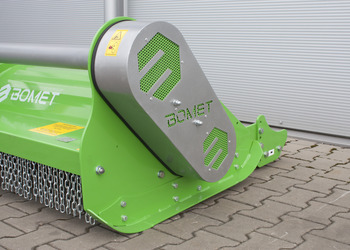

To ensure the safety and reliability of the flail mower's operation with increased width and higher gearbox power, the belt transmission is equipped with five SPB1320 V-belts.

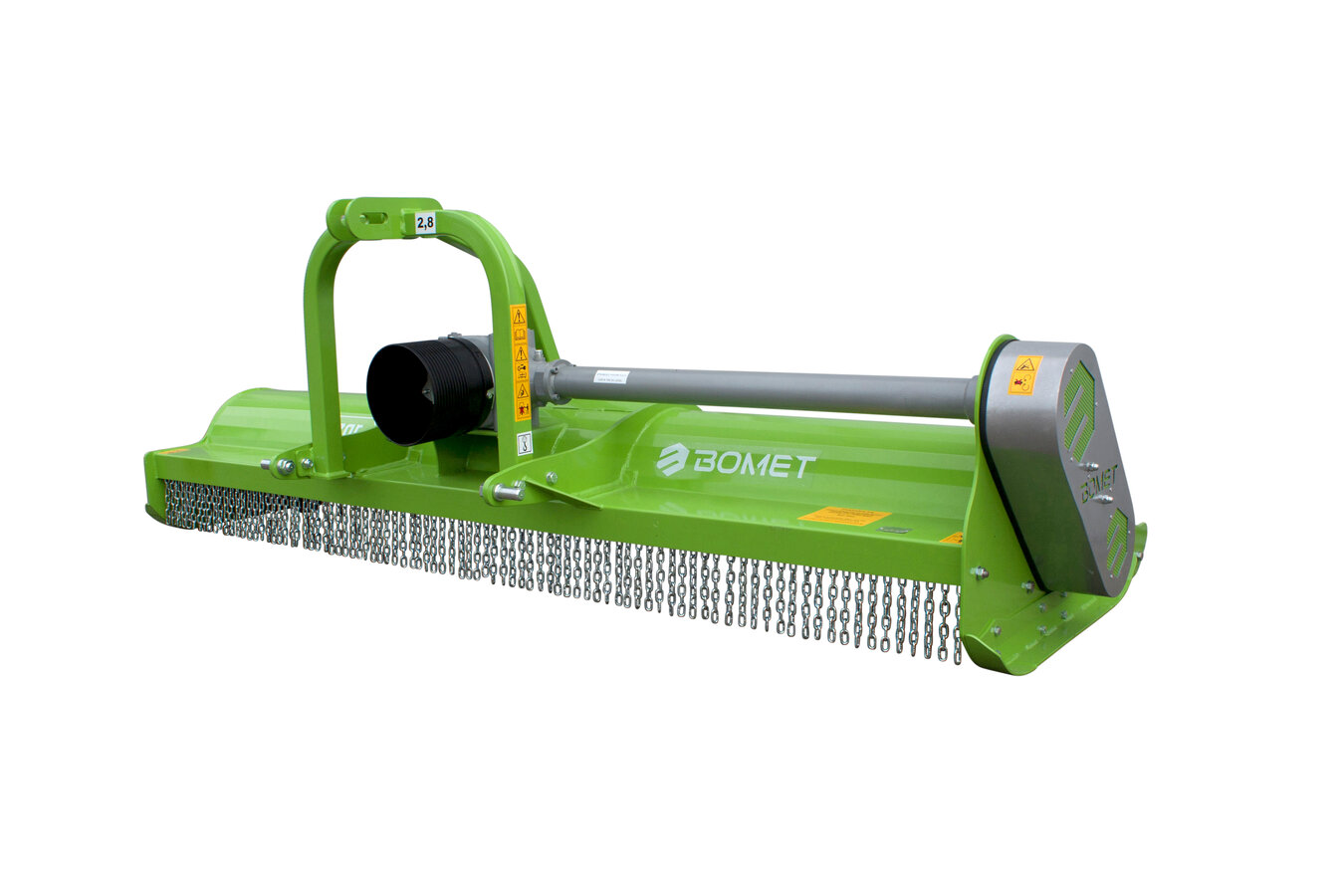

The flail mower is equipped with PTO shaft as a standard.
| Symbol | Z317/5 | Z317/6 | Z317/7 |
|---|---|---|---|
| Working width (m) | 2,4 | 2,6 | 2,8 |
| Number of hammers (pcs) | 40 | 44 | 48 |
| Number of Y type knives (pcs) | 80 | 88 | 96 |
| Max. diameter of cut branches (mm) | 30 | ||
| Rotations of the operating rotor (rpm) | 1620 | ||
| Machine weight with wheels (hammers) (kg) | 590 | 640 | 685 |
| Machine weight with wheels (Y type knives) (kg) | 580 | 630 | 680 |
| Machine weight with roller (hammers) (kg) | 600 | 650 | 700 |
| Machine weight with roller (Y type knives) (kg) | 590 | 640 | 690 |
| Power demand (kW / HP) | 80 / 108 | 85 / 115 | 90 / 122 |
Стандартное оборудование
hammers

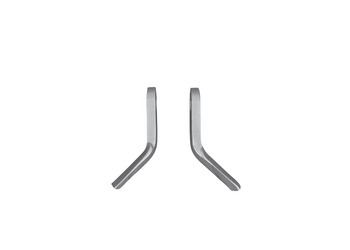

Y type knives

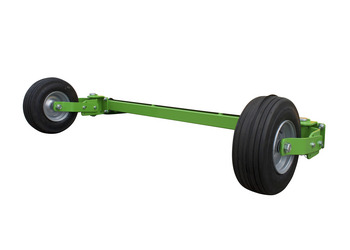

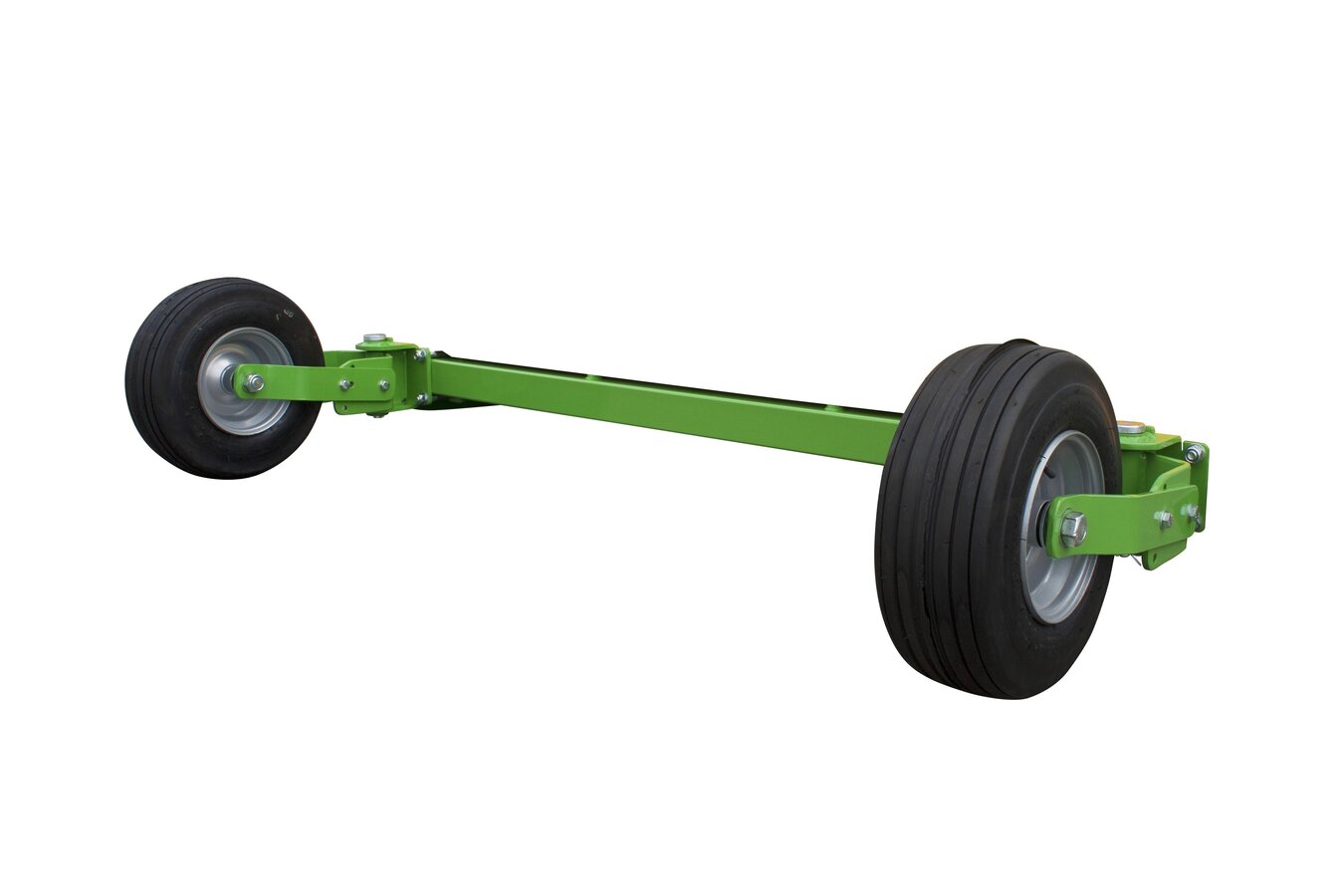

wheels

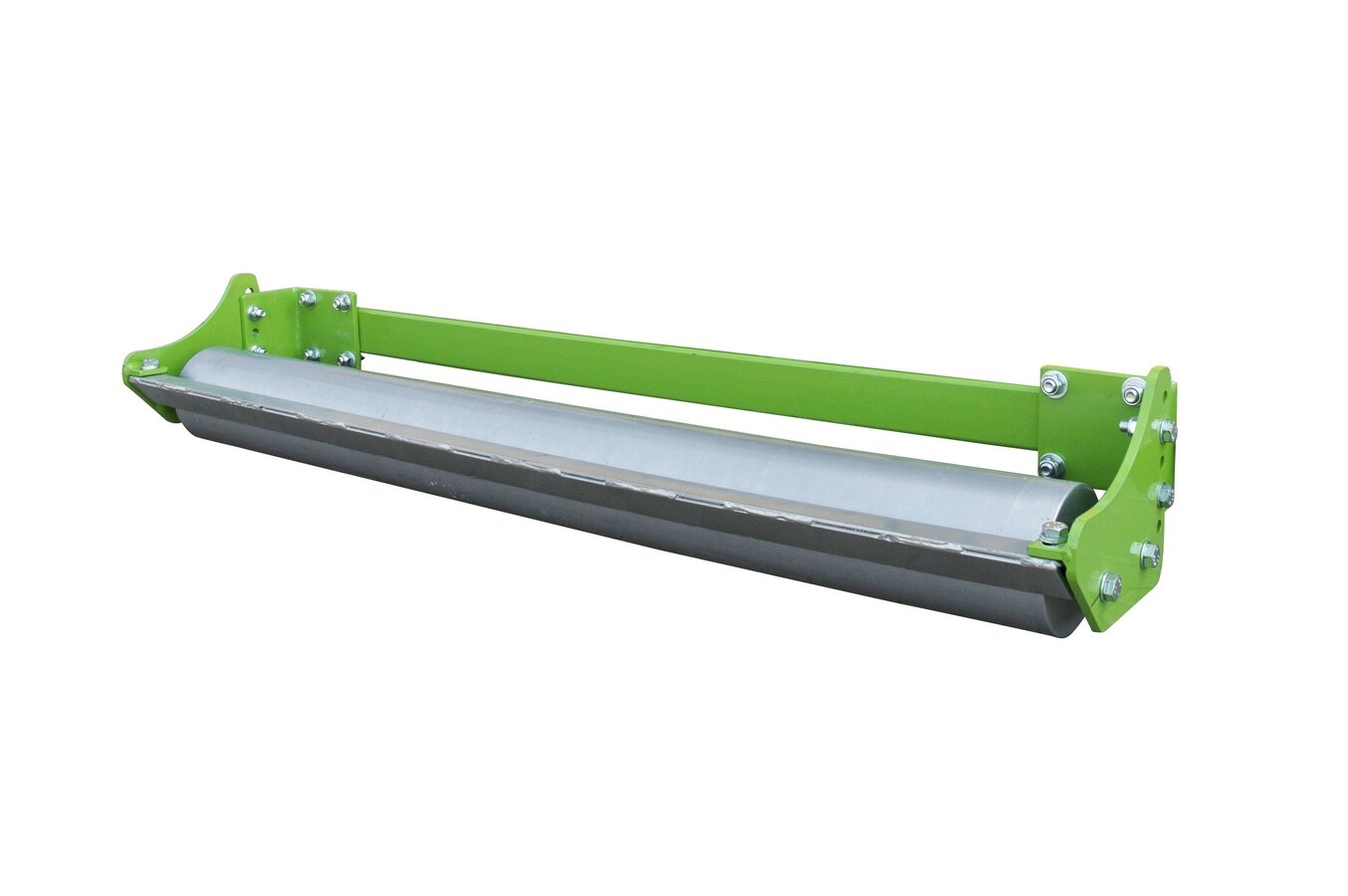

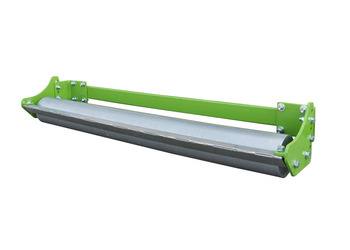

roller

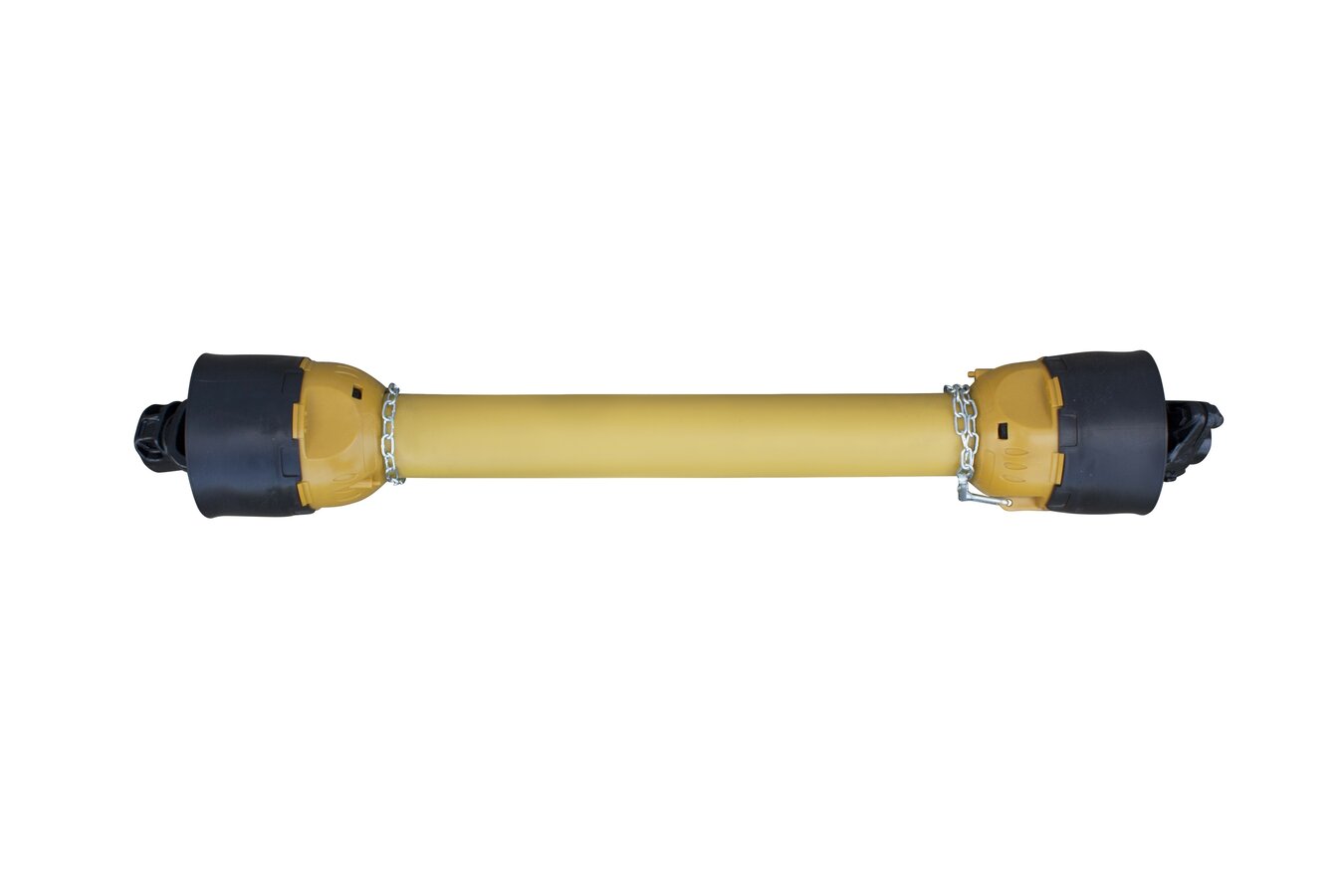

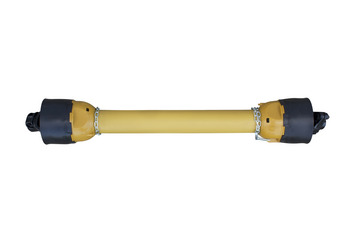

PTO shaft
